N52 네오디뮴 자석은 제한된 공간에서 높은 자기 에너지가 필요한 자기 회로에 사용되는 고에너지 소결 NdFeB 자석입니다. OSENC는 완제품 치수, 착자, 코팅 및 명시된 자기 특성 합격 기준을 관리하여 맞춤형 N52 디스크형, 블록형, 링형, 원통형 및 도면 사양 자석을 제조합니다.
N52는 제한된 자석 체적에서 높은 자기 에너지가 필요한 설계에 적용됩니다. 아래 값은 엔지니어링 비교를 위해 공개된 N52 재료 참고값입니다. 생산품 합격 판정은 승인된 재료 사양, 완제품 도면 및 합의된 주문 요구사항을 따릅니다.
| 특성 | 공개된 N52 참고값 | OSENC의 적용 방식 |
|---|---|---|
| 잔류 자속 밀도, Br | 1.42–1.46 T | 자기 회로에 N52 적용을 평가할 때 재료 수준의 참고 자료로 사용됩니다. |
| 고유 보자력, HcJ | ≥ 955 kA/m (≥ 12 kOe) | 작동 온도 또는 역방향 감자 자계가 등급 선정에 영향을 미치는 경우 검토합니다. |
| 보자력, HcB | ≥ 836 kA/m (≥ 10.5 kOe) | 감자 곡선 및 동작점과 함께 검토합니다. |
| 최대 에너지적, (BH)max | 382–414 kJ/m³ (48–52 MGOe) | 작은 자석 체적으로 높은 자기 에너지가 필요한 설계를 지원합니다. |
| 온도 기준 | 공개된 표준 N52 참조 자료는 일반적으로 약 60–80 °C 범위이며, N52M 참조 자료는 규정된 조건에서 100 °C에 도달할 수 있습니다 | 최종 등급을 확정하기 전에 연속 사용 온도, 피크 온도, 형상 및 동작점을 검토합니다. |
참고: 이 재료 물성값은 모든 완성 부품에 대한 포괄적 보증이 아닙니다. Br, HcB, HcJ 또는 (BH)max가 합격 판정 항목인 경우, 해당 요구사항을 RFQ에 명시하고 승인된 생산 사양서에 따라 관리해야 합니다.
OSENC는 등급 번호만을 완전한 사양으로 간주하지 않고 최종 어셈블리 요구사항을 기준으로 맞춤형 N52 네오디뮴 자석을 제조합니다. 견적 전에 형상, 착자, 코팅, 작동 조건 및 주요 자기 출력을 종합적으로 검토합니다.
| 항목 | OSENC 제조 범위 | RFQ에 명시할 사항 |
|---|---|---|

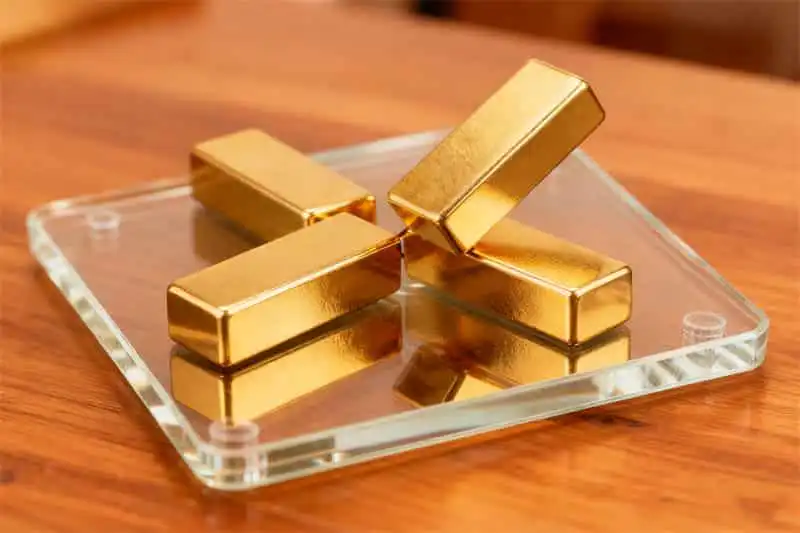

| 형상 | 디스크, 블록, 링, 원통 및 도면 지정 형상 | 완성품 치수, 홀, 반경, 모따기 및 주요 인터페이스 |
| 등급 | 자기 및 작동 요구사항을 기준으로 선정한 N52 | N52 요구사항 또는 목표 자기 성능 |
| 착자 | 축 방향, 직경 방향 및 도면에 정의된 구성 | 착자 방향 또는 극 도면 |
| 코팅 | Ni-Cu-Ni, 아연, 에폭시 및 프로젝트별 코팅 공정 | 습도, 화학물질 노출, 조립 공정 및 외관 요구사항 |
| 치수 | 승인된 완성품 도면에 따라 제조 | 공칭 치수, 공차 및 상대 부품 인터페이스 |
| 자기 성능 | 자속, 인장력 또는 토크 요구사항을 명시된 조건과 연계 가능 | 목표값과 측정 위치, 치구 또는 작동 형상 |
N52 성능은 소재 등급만으로 결정되지 않습니다. OSENC는 도면, 착자, 코팅 및 합의된 자기적 합격 조건에 따라 완성 자석을 관리하여, 부품이 등급명만이 아니라 실제 어셈블리 조건에 맞게 규정되도록 합니다.
| 요구 사항 | OSENC 생산 관리 |
|---|---|
| 소재 요구사항 | N52 요구사항은 해당 주문에 사용되는 승인된 소재 사양과 연계됩니다. |
| 완성 치수 | 공칭 치수와 중요 공차는 승인된 완성 부품 도면에 따라 관리됩니다. |
| 착자 | 착자 방향 또는 극 배열은 생산 전에 정의하여 완성 자석이 어셈블리 요구사항에 부합하도록 합니다. |
| 표면 자속 밀도 | 핵심 자속 요구사항은 지정된 경우 정의된 측정 위치와 완성 형상을 기준으로 설정됩니다. |
| 인장력 | 핵심 인장력 요구사항은 관련 치구, 강재 조건, 인장 방향 및 간극 또는 접촉 조건을 반영하여 정의됩니다. |
| 코팅 | 표면 보호 방식은 부식 노출 환경, 조립 방법 및 완성품의 치수 인터페이스를 고려하여 선택됩니다. |
| 최종 승인 | 승인된 도면과 합의된 검사 또는 자기적 인수 기준은 생산 기준이 됩니다. |
N52는 더 높은 자기 에너지 밀도가 실제 공간 또는 성능 제약을 해결할 때 가장 유용합니다. OSENC는 N52를 모든 하위 NdFeB 등급보다 자동으로 우수한 것으로 취급하지 않고, 자기 회로를 기준으로 해당 등급을 비교합니다.
| 설계 조건 | OSENC의 N52 판단 |
|---|---|
| 제한된 자석 체적 | N52 우선 고려 회로에서 가용 공간 내에 더 높은 자기 에너지가 필요한 경우. |
| 단위 체적당 최대 에너지가 중요한 경우 | N52 우선 고려 작동점에서 고에너지 등급이 유용한 출력상의 이점을 만들어 낼 수 있는 경우. |
| 더 큰 자석 체적이 허용되는 경우 | N52를 선택하기 전에 동일한 완제품 성능 목표를 기준으로 N42, N45 또는 N48을 비교하십시오. |
| 높은 작동 온도 | 표준 N52가 올바른 선택이라고 가정하기 전에 작동점과 더 높은 보자력 등급을 적용하는 방향을 검토하십시오. |
| 비용이 설계를 좌우하는 경우 | 조립체가 활용하지 않는 에너지 밀도에 비용을 지불하기 전에 자석 형상과 강재 자속 귀환 경로를 최적화하십시오. |
| 큰 공극 또는 취약한 강재 자속 귀환 경로 | 먼저 자기 회로를 개선하십시오. 등급만 높여서는 요구되는 완제품 성능을 달성하지 못할 수 있습니다. |
Sintered NdFeB is brittle and corrosion-sensitive compared with ordinary structural metals. That means the N52 grade, magnetic working point and surface protection must be treated as separate design decisions.
OSENC reviews the relevant operating temperature, corrosion exposure, assembly method and risk of magnet-to-magnet or magnet-to-steel impact before the finished specification is locked. If the application condition exceeds what standard N52 can support, the grade direction or magnetic circuit should be changed instead of relying on the N52 label alone.
For air shipment, packaged magnetic field is treated as a shipment-configuration requirement. Packaging and shielding are reviewed for the actual shipment rather than inferred from coating or magnet size.
The useful question is not whether a supplier can quote “N52.” It is whether the finished magnet can be defined around the assembly, drawing and acceptance condition. OSENC keeps those requirements connected from RFQ through production specification.
Finished dimensions, critical interfaces and magnetization are built around the approved part drawing instead of a generic stock-magnet description.
When flux, pull force or torque matters, the target is linked to a defined measurement position, fixture or operating geometry rather than a standalone number.
Grade, geometry, coating and the magnetic circuit are reviewed together so N52 is used where it creates actual design value.
OSENC reviews the geometry, grade, magnetization, coating, operating condition and magnetic acceptance criteria before quotation. A finished-part drawing is the fastest route to a production-ready custom N52 magnet specification.
Get an N52 Magnet QuoteNo. N52 is a high-energy grade, and OSENC selects it when its energy density fits the magnetic circuit and operating conditions. A higher grade number is not automatically the better engineering choice for every assembly.
No single grade number defines finished pull force. Higher-energy material can increase output in the same magnetic circuit, but pull force also depends on magnet dimensions, air gap, contact area, steel thickness, return path and the test method.
OSENC does not lock standard N52 by temperature alone. Published references vary around 60–80°C depending on material source, geometry and working point. Continuous and peak temperature should be included in the RFQ so the finished design can be reviewed against the actual operating condition.
Coating selection depends on corrosion exposure, assembly process, coating-damage risk and dimensional interfaces. Ni-Cu-Ni, zinc, epoxy and project-specific coating routes can be reviewed with the finished-part drawing.

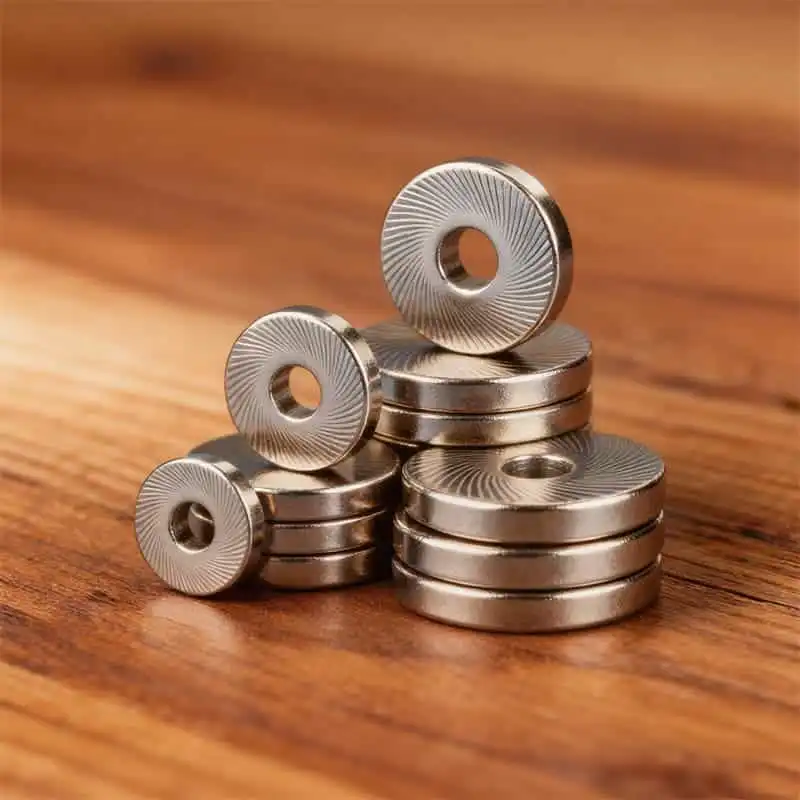

Yes. OSENC manufactures N52 magnets in disc, block, ring, cylinder and drawing-specific geometries. Finished dimensions, critical interfaces, coating and magnetization direction are reviewed together before quotation.
Send the drawing, finished dimensions, magnetization, coating, operating temperature, application, quantity and any critical magnetic-performance target. When pull force, flux or torque is an acceptance item, include the test condition or working geometry.
Send OSENC the finished-part drawing, magnetic requirement and operating conditions. We review the N52 grade, geometry, coating and magnetization as one production specification before quotation.
